Description
Product Advantages
To produce a monocrystalline silicon cell, an absolutely pure semiconduction material is necessary. Monocrystalline rods are extracted from melted silicon and then sawed into thin plates. This production process guarantees a relatively high level of efficiency silicon and makes monocrystalline panels one of the most efficient, producing smaller solar cells, and therefore smaller panels. Monocrystalline works very well in bright cool conditions.
Data Sheet
|
Cells type: MONO |
FL-M100 |
FL-M160 |
FL-M200 |
FL-M260 |
FL-M320 |
|
Peak Power(PMP) |
100W |
160W |
200W |
260W |
320W |
|
Tolerance |
± 3% |
||||
|
Maximum power current(IMP) |
5.55A |
8.33A |
5.56A |
8.34A |
8.34A |
|
Maximum power voltage(VMP) |
18V |
18V |
36V |
30V |
36V |
|
Short-Circuit Current(ISC) |
5.89A |
8.83A |
5.89A |
8.83A |
8.83A |
|
Open-Circuit Voltage(VOC) |
21.6V |
21.6V |
43.2V |
36V |
43.2V |
|
Maximum System Voltage |
1000VDC |
||||
|
F.F |
73% |
||||
|
Module eff. |
20% |
20% |
20% |
20% |
20% |
|
All technical data at standard test condition:AM=1.5, E=1000W/m², Tc=25℃ |
|||||

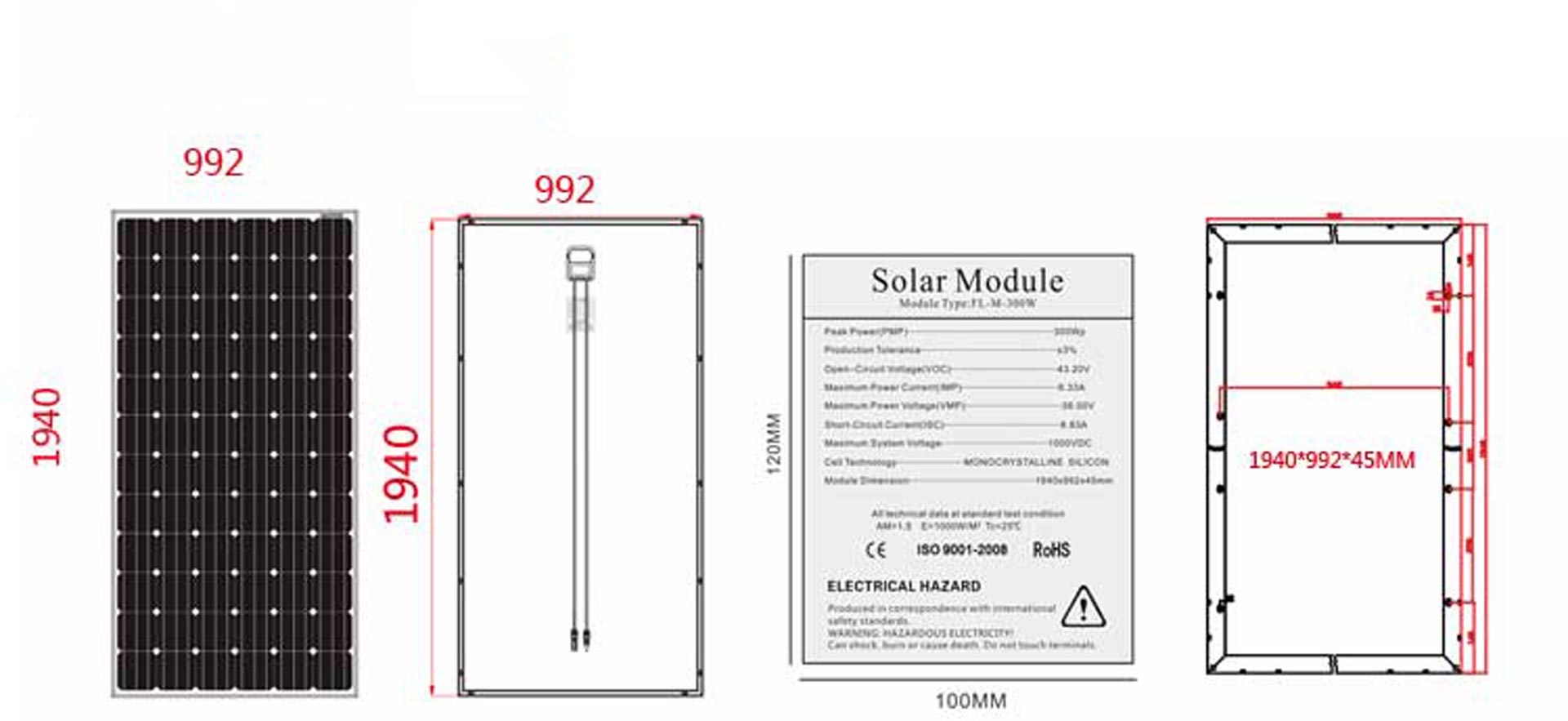

Product Details
Delivery
FAQ
Q: How about the performance of your solar panel?
A: We use A-class solar cells made in Taiwan and good material. It’s enough power and good performance.
Q: How about the conversion rate of the solar panel?
A: The poly solar panel is about 16.8%, the mono solar panel is about 17.6%.
Q: Can we customize the size of the solar panel?
A: Yes, we accept customized orders, but the quantity needs to reach at least 100 pieces.
Q: What kind of certificate of solar panel do you have?
A: We have CE, SGS, ROHS, SONCAP, etc
