Description
Main Advantage
- All systems have LCD digital displays. (Can see the system working condition, such as system voltage, system power, charge current, etc)
- All systems have AC and DC output, and also have AC charger function for backup.
- When the electricity is off, it can switch automatically and take use battery power to run the load. When power is on it also can switch automatically and take use of main power(utility electric/generator electric), at the same time charging the battery.
- The inverter is a pure sine wave inverter, it can load inductive load such as air condition very smooth.
- Each component has a single chip detection that protected itself. (Over-voltage protection, low-voltage alarm, overload protection, over-heat protection, short-circuit protection, etc)
Data Sheet
|

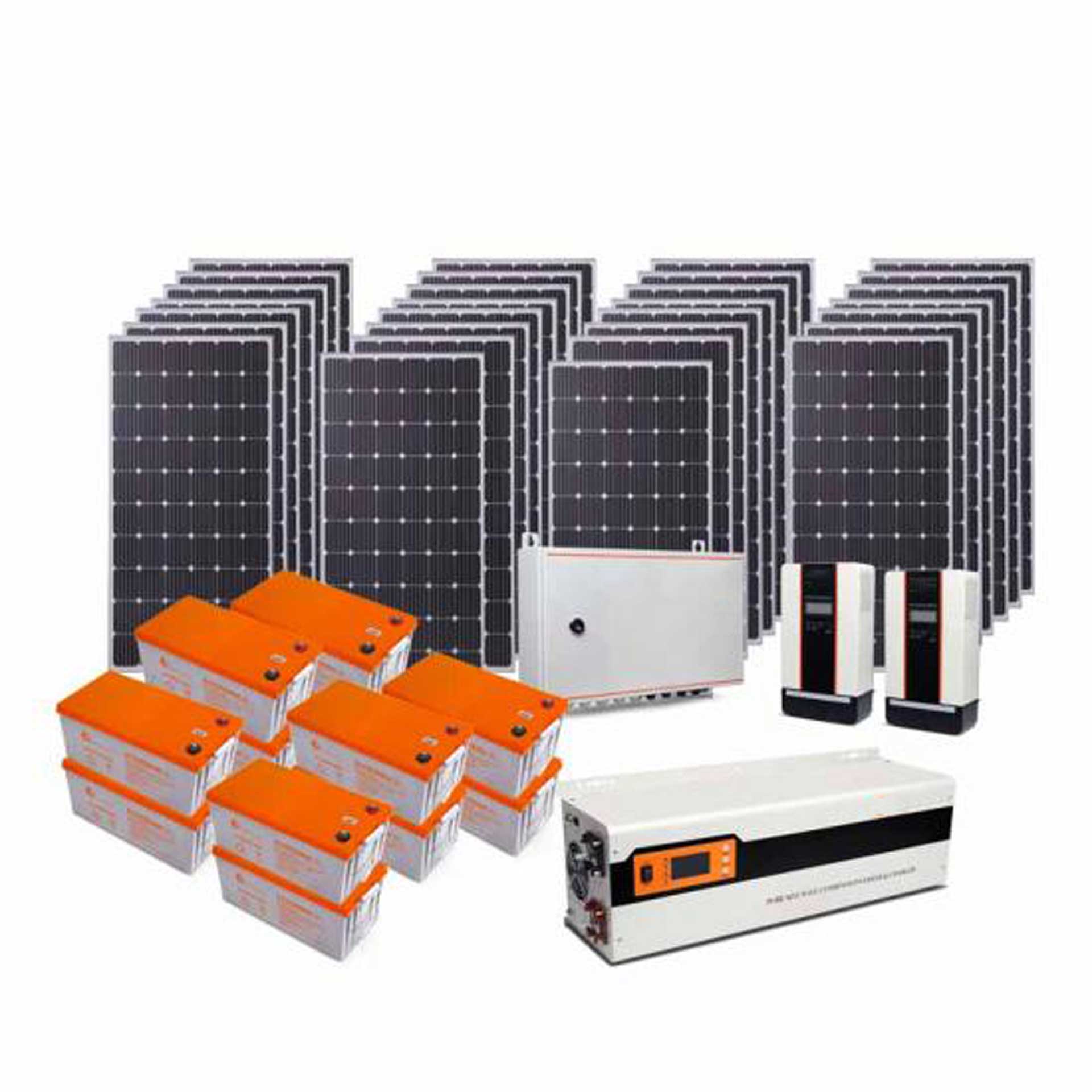

Model
|
FL-POWER-7500VA 48V
|
||||
|

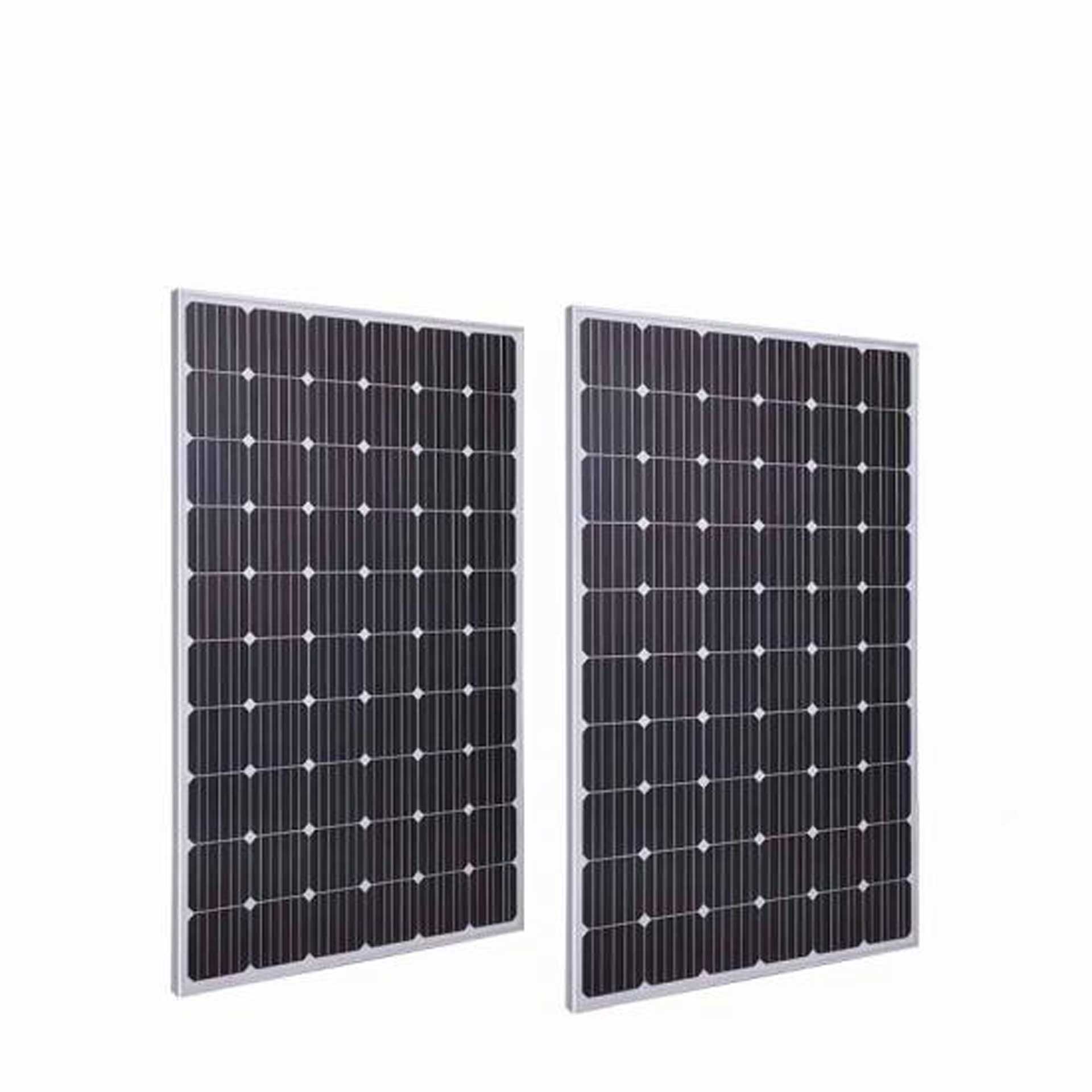

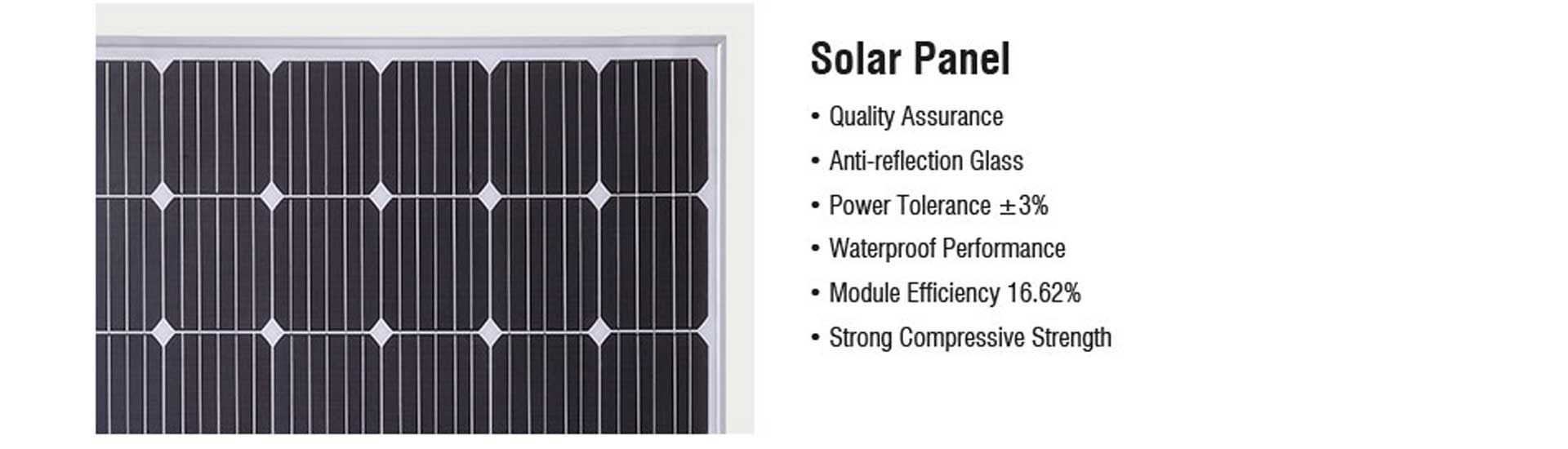

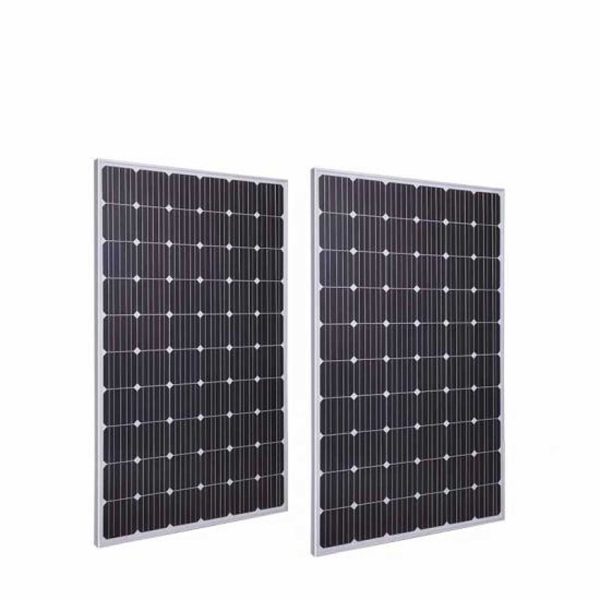

Solar Power
|
Mono 260w/30v * 30PCS
|
||||
|

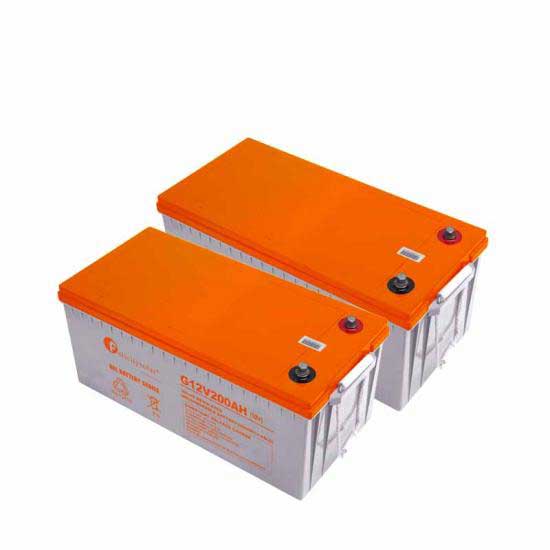

Gel Deep Cycle Battery
|
200AH/12V * 12PCS
|
||||
|

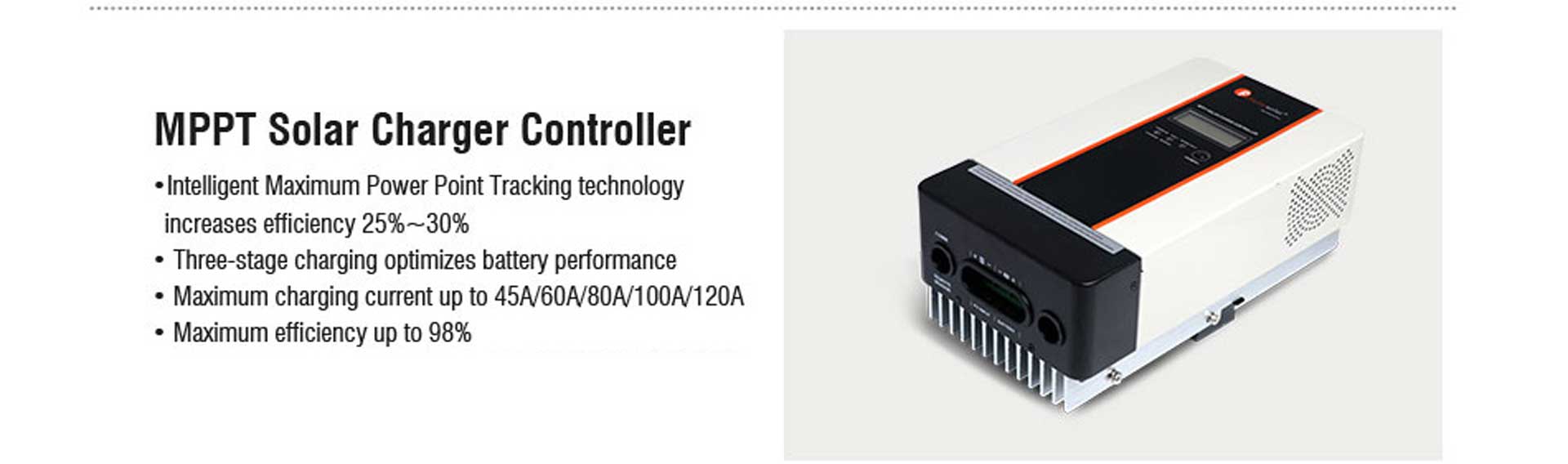

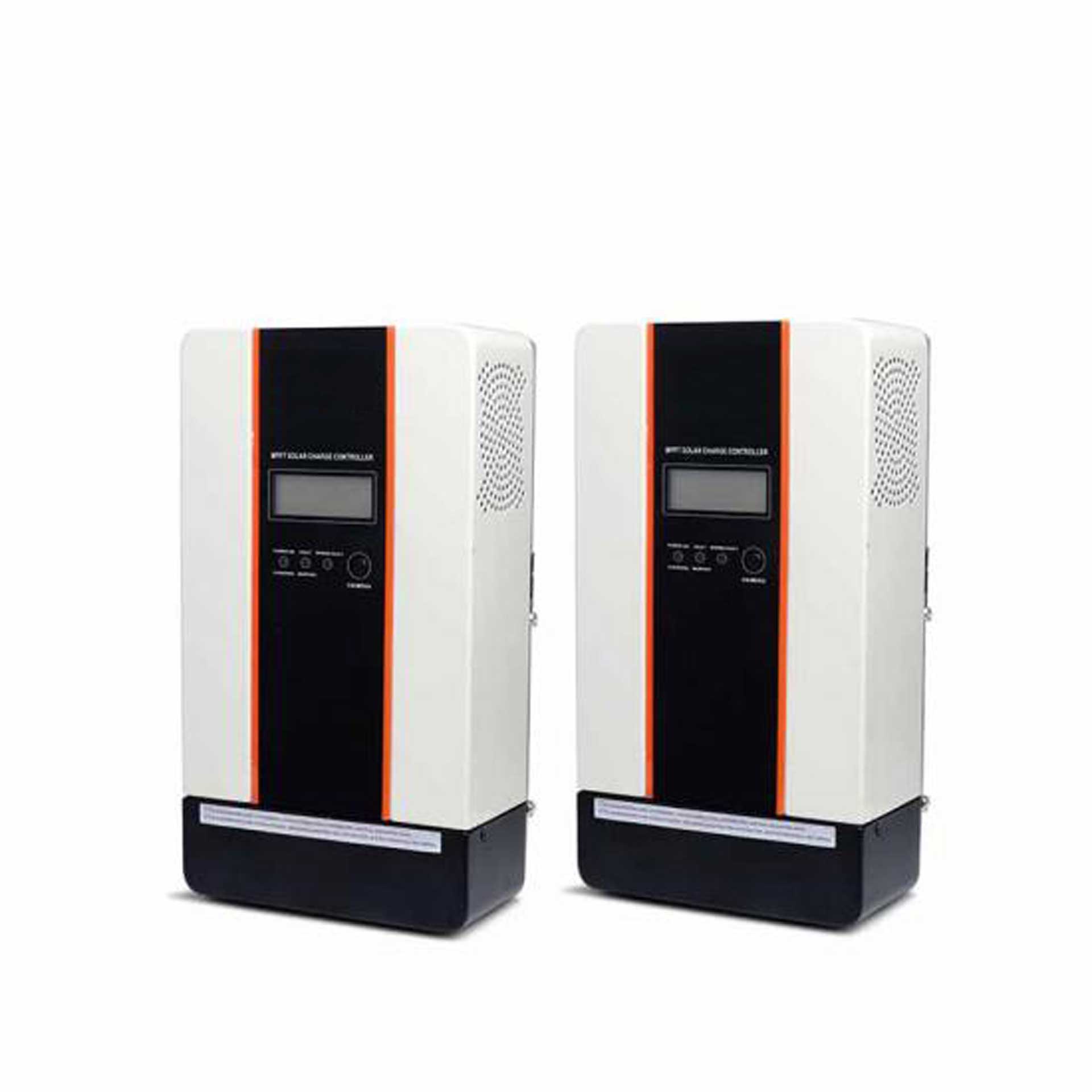

Controller
|
MPPT charge controller 80A DC12/24V/48V with LCD * 2PCS
|
||||
|

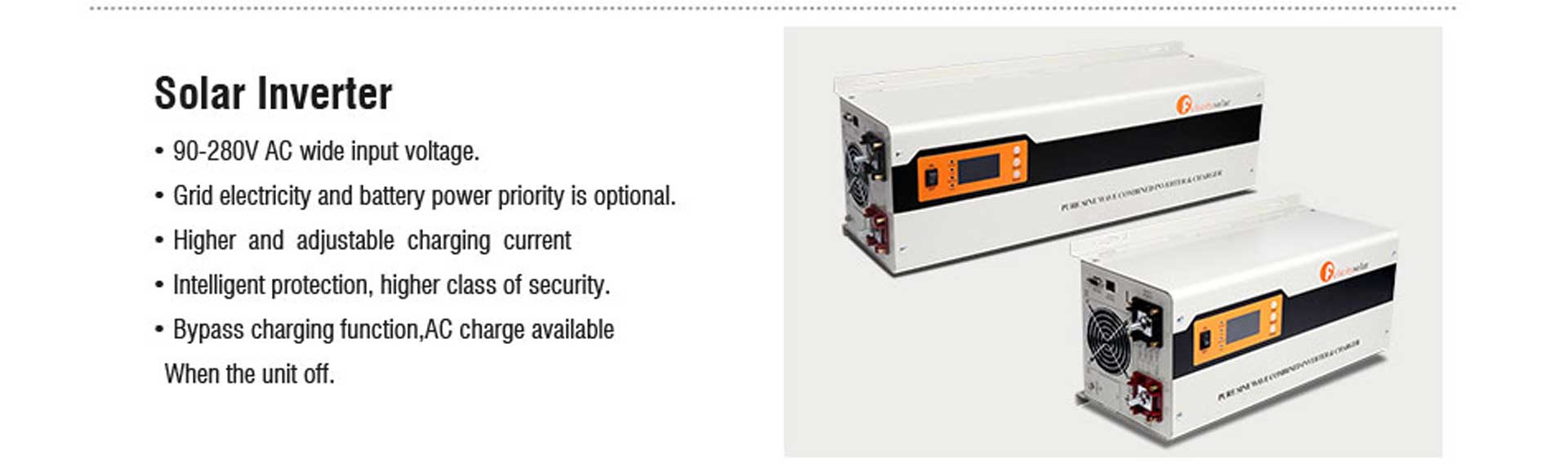

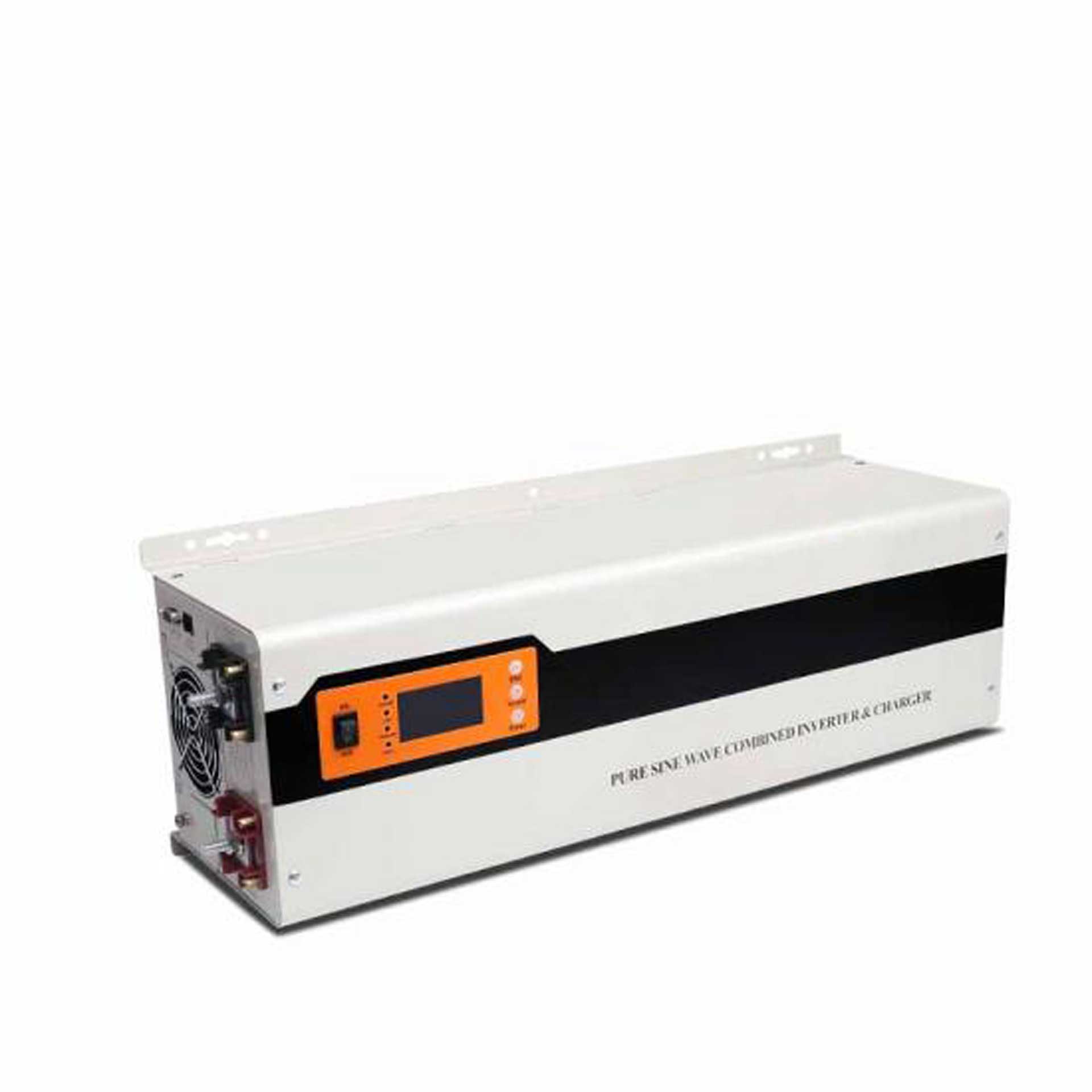

Inverter
|
Pure Sine Wave Inverter 7500VA 24V * 1PCS
|
||||
|

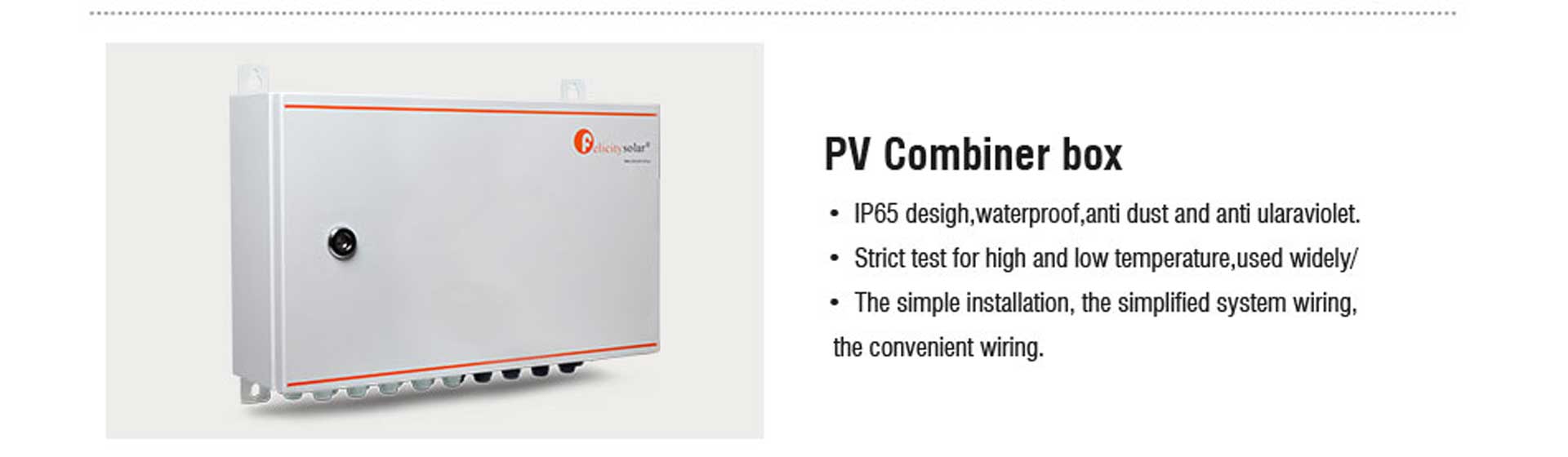

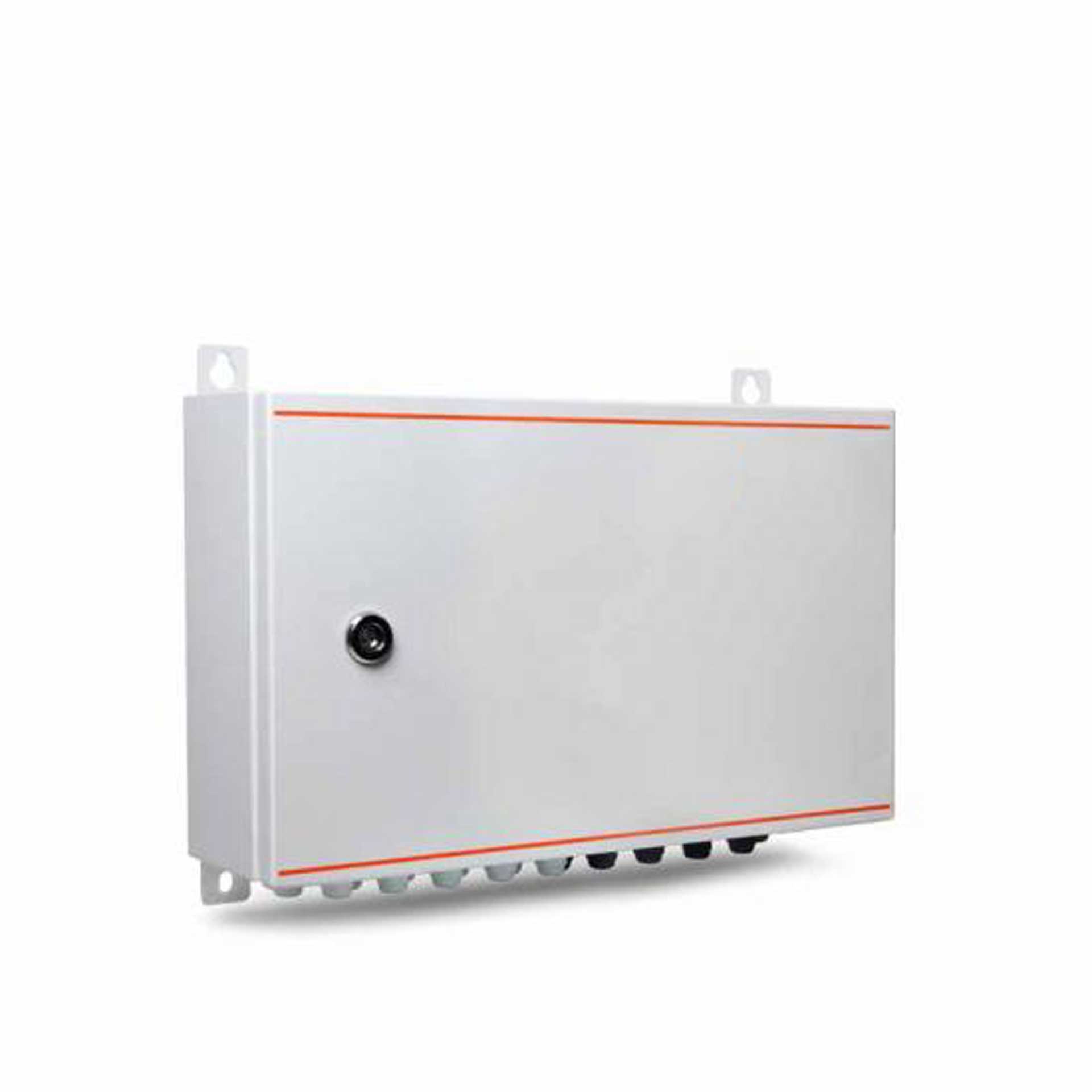

Photovoltaic Box
|
6 Combine 1 Photovoltaic Box* 2PCS
|
||||
|

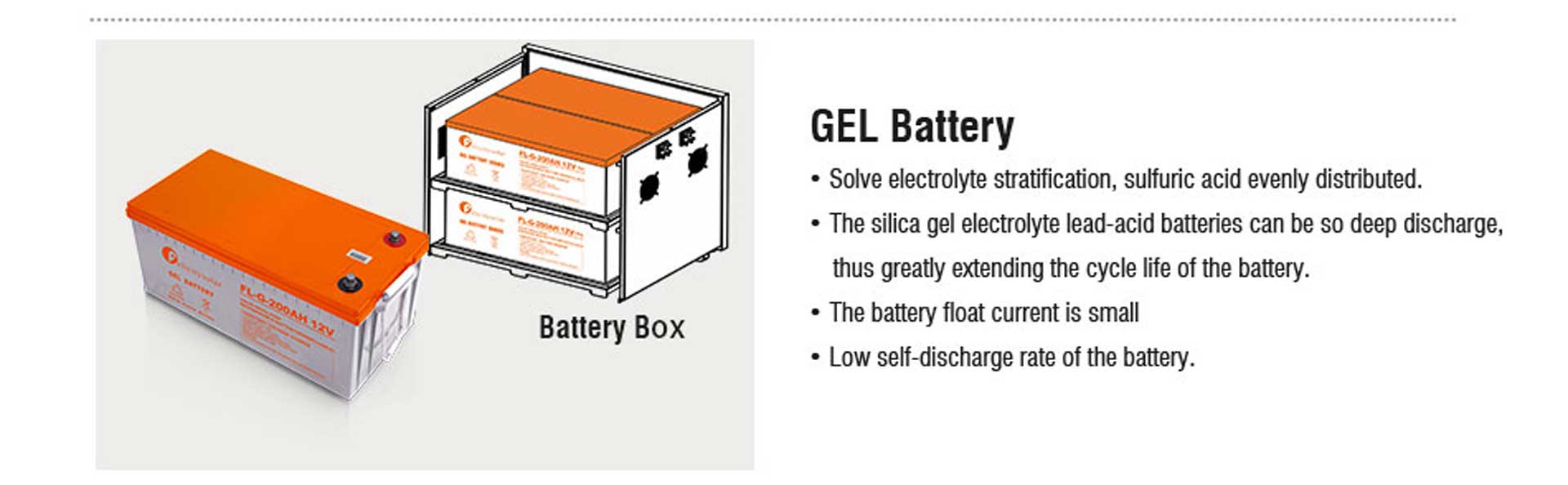

Battery Box
|
12PCS battery in 3 battery Box
|
||||
|

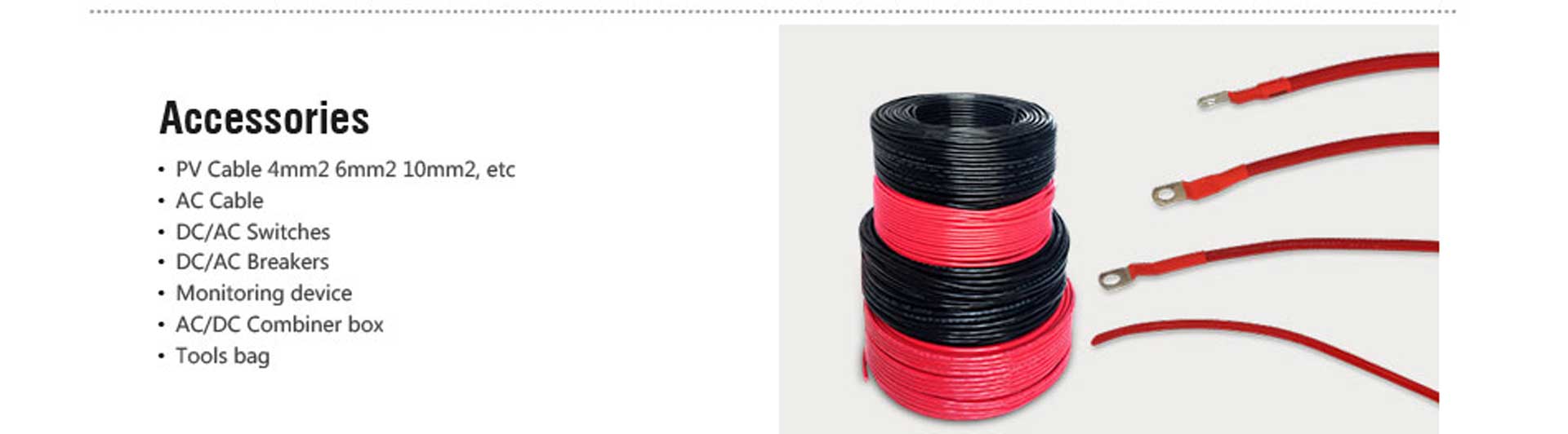

PV Copper Wire
|
FL-POWER-7500VA 48V:
6MM² 25M 4 pcs; 6MM² 1M 4pcs; 16MM² 0.8M 8 pcs; 16MM² 0.2M 6 pcs
|
||||

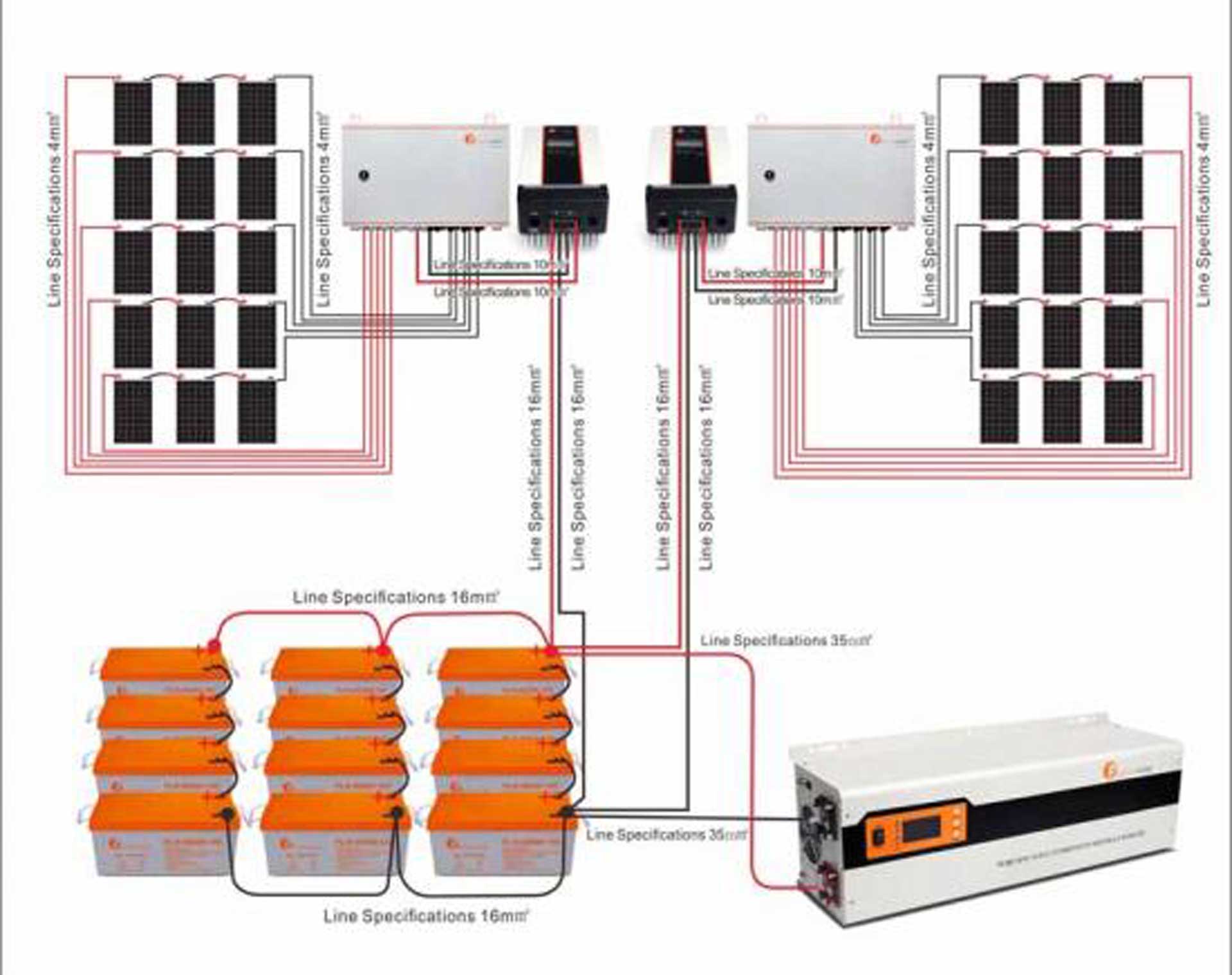

System Connection Diagram
Panel: 3 in series 4 in parallel (two groups)
battery：4 in series 3 in parallel
Product details
